    Contact Sensors

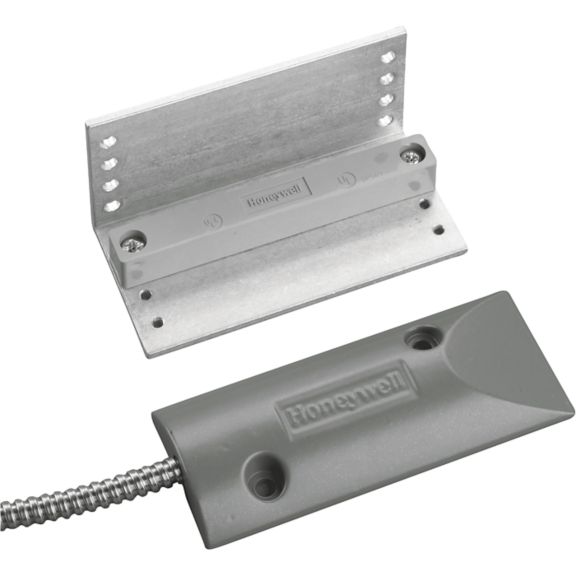

    V-Plex® 4959SN Addressable Overhead Door Contact

    V-Plex® 4959SN addressable overhead door contacts feature a rugged aluminum housing and adjustable L bracket type magnet.

    V-Plex® 4959SN addressable overhead door contacts feature a rugged aluminum housing and adjustable L bracket type magnet.

    Features & Benefits:
    • Rugged aluminum housing and adjustable L bracket type magnet
    • Standard gap: 2 inch (51mm)
    • 24 inch (61cm) armored cable
    • Epoxy sealed for protection from moisture and impact
    • Programmed from VISTA keypad
    • Switch Type: Form A (SPST) Reed
    • Contact Rating: 100 mA at 28V DC

    Others

    • Contact Configuration
      • Form A
    • Switch Configuration
      • SPST
    • Switch Type
      • Reed
    • Maximum Gap Distance
      • 2 inch
      • 51 millimetre
    • Material
      • Aluminum
    • Contact Rating
      • 100 mA @ 28 voltage direct current

    Others

    • Contact Configuration
      • Form A
    • Switch Configuration
      • SPST
    • Switch Type
      • Reed
    • Maximum Gap Distance
      • 2 inch
      • 51 millimetre
    • Material
      • Aluminum
    • Contact Rating
      • 100 mA @ 28 voltage direct current
    • Contact Configuration : Form A
    • Switch Configuration : SPST
    • Switch Type : Reed
    • Maximum Gap Distance : 2 inch|51 millimetre
    • Material : Aluminum
    • Contact Rating : 100 mA @ 28 voltage direct current
    SKU
    Description
    alt
    4959SN
    V-Plex Addressable Overhead Door Contact
